| Place of Origin | Hunan, China |
| Brand Name | ZH brand |
| Certification | ce |
Paper pulp egg carton tray making machine/small paper recycling machine manufacture for sale 2000pcs/hr
Taking old newsprint, magazine or used cartons, any kind of paper products as the raw material, with the process of pulping, screening, consistency regulating, forming and drying. The same machine can be used to prodce molded pulp egg cartons as well with a higher capacity.
By changing to different molds, the egg tray production line can also produce various kinds of moulded pulp products with large quantity demand and simple structure such as egg box(6-hole, 10 hole, 12-hole,etc) , fruit tray(apple tray, avocado tray, pear,etc), Coffee cup tray( 2-cup holder, 4-cup and 5-cup holder) and wine bottle tray. It can also produce some types of inner packages for electric products and disposable medical-care products.
Fully Atutomatic Rotary Forming Machine
The fully automatic rotary forming machine line is for medium and large capacity production, such as 2000pcs/hr, 3000pcs/hr, 3600pcs/hr, 4000pcs/hr, 5000pcs/hr, 6000pcs/hr, etc for choice.
There are some kinds of specification of 2 face platens, 4 face platens, 6 face platens, 8 face platens and other specifications for the rotary machine; and single layer drying line and multi-layer drying line for choose. The drying line can use diesel oil, LPG, natural gas, coal, charcoal and steam heating, etc.
Full Automatic Rotary Forming machine production line
|
Capacity |
Pulping Machine Parameter |
Forming Machine Parameter |

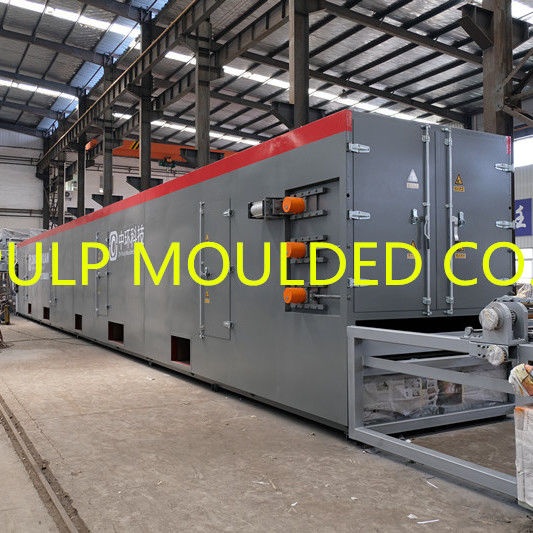

Drying Line Parameter |
|
2250pcs/hr |
Effective Volume 2m3 Power 30kw |
two-Face forming platens, one-face transferring platen. Mold Platen Size 1200×440mm |
Dimension 11100×1530×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
|
3000pcs/hr |
Effective Volume 3m3 Power 30kw |
Two-face forming platen, one-face transferring platen. Mold Platen Size 1500×440mm |
Dimension 11100×1880×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
|
3600pcs/hr |
Effective Volume 3m3 Power 30kw |
Two-face forming platens, one transferring platen. Mold Platen Size 1800×440mm |
Dimension 11100×2230×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
|
5000pcs/hr |
Effective Volume 3m3 Power 55kw |
Four face forming platens, one transferring platen. Mold platen size: 1500×440mm |
Dimension 14800×1880×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
| 6000pcs/hr |
Effective Volume 3m3 Power 55kw |
Four face forming platens, one transferring platen. Mold platen size: 1800×440mm |
Dimension 14800×2230×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
|
Description: The production line capacity isbased on the 30 cell egg tray. (Mold size: 300×290mm, weight: 70g) For different capacity and other products of the production line, it can be customized according to clients' requirement. |
|||
Range and specification of Paper Pulp Products
Contact Us
Amy
Tel/Wechat/Whatsapp: 86-15675295837
Company Information
ZH Molded Pulp Co., Ltd is specialized in manufacturing pulp molding machines, the first pulp molding machine supplier found in 1986.
Through 20 year’s experience, our company has a professional team in designing, manufacturing, and after-sale service. Our team has know the most advanced technology well in pulp molding machines, which have the types of reciprocating machine, rotary machine. In 2008, we developed an energy-saving, small-space multi-layers drying line, popular in domestic and abroad. Our machine has been sold well at home and abroad such as South America, Africa, Russia, and Middle-East area, in the quality of energy-saving, advanced design, and reasonable cost.
We are a trustworthy manufacturer of many mold production lines:
