| Place of Origin | Hunan, China |
| Brand Name | ZH Brand |
| Certification | CE |
| Model Number | 1000A |

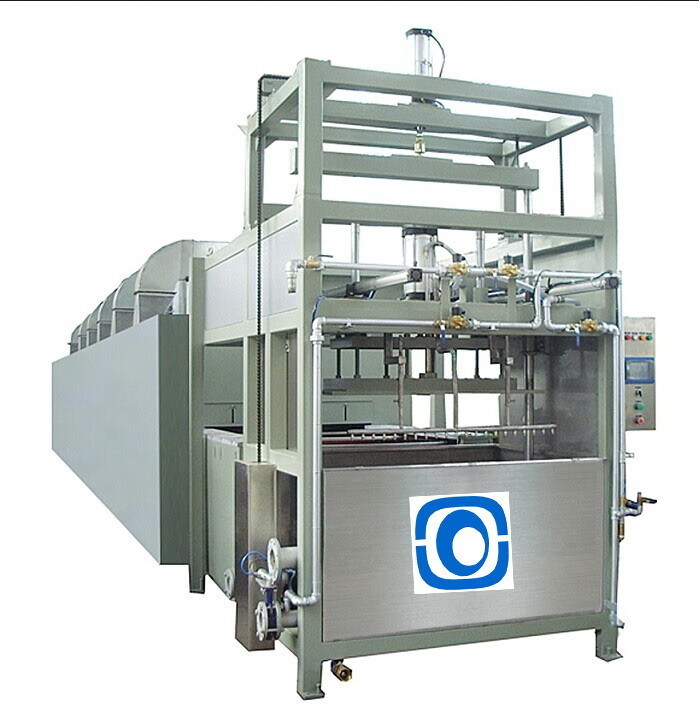

Paper pulp molding industrial package reciprocation machine production line
1 General introductions
raw material: waste paper/newspaper/box output: egg trays/cartons or some appliance packages
processing type: pulp molding machine place of origin:Xiangtan City, Hunan Province, China
brand: Xiangtan ZH voltage: 380V
Part NO. 1000A capacity: 1000pcs/h
Automation: fully automatic drying line: single layer
forming type: rotary forming machine automation:fully automation
|
Pulping system |
Main equipments:pulper 1.7m3,22kw,1set;vibration screen 1m2,3kw,1set;mixer,2sets;pulp pump, water pump, control cabinet etc. |
|
Forming system |
forming machine,1set;with 1 forming platen and 1 transfer platen;platen size: 800×660mm,forming effeciency: 2-4cycles/min. vacuum auto draign system,mold cleaning system, control cabinet have been equipped |
|
Drying system |
Outline dimension: 28080×1850×3600mm; single layer conveying chain. Heated by unit and the temperature of each unit could be controlled independently;multi burners with French or Italian brand.The enery for option: LPG,GAS,diesel oil.Equiped with auto control cabinet. |
|
Hot pressing system |
Used press the products after drying; 1set; platen size: 600*480mm; power 6KW; with counter and safety protection appliance; The pressure and temperature can be adjusted. adopting the gas-liquid pressurized technology. Equipped with control cabinet. |
|
Cutter |
Used for the trimming and tidying of the products. It can be selected according to the practical requirement. |
|
Subsidiary Equipments |
Vacuum pump,18.5kw, 1 set; air compressing system: air compressor (15kw, 1set), air dryer, air filter and air storage tank. |
1, shipping method: By VSL
2, L/T : 2-3 Months once the order fixed
3, payment terms: 50% T/T prepaid in advance ,50% finished before the shipment.
4,incoterms: FOB Changsha
5, wooden crated
6, ZH would send at least 2 engineers to support the test-run and set up
1, Any defined design projects is welcomed, based on many skilled engineers and designers
2, ZH guarantee to arrange at least 2 engineers to support the installation and set up, guide the test-run
and routine maintenance
3, ZH provide the inquiry and warranty 1 year for free
