| Place of Origin | Hunan, China |
| Brand Name | ZH brand |
| Certification | ce |
| Model Number | E8000 double rotary |
8000pcs/hr double rotary Paper Recycling production line for chicken/quail/bird egg tray with Auto stacking Machine
1.Output: 360-20000pcs/h pulp 30cell egg trays
2.Raw material: waste paper
3.Fuel: natural gas, LPG, diesel oil,heavy oil,electricity etc.depending on local cost.
4.Automation: Fully-automatic & Semi-automatic
5.Quality standard: CE Approval, ISO
Features
Workshop: size ≥7x10x60m.
Total power for the production line: 402KW.
Workforce for the egg tray machine: 8-10 people/shift.
One piece of forming platen and transferring platen equipped. Platen size: 1800*440mm. It can be mounted 2sets of 30-cell egg tray mold on the platen (3pcs/cycle, total 18pcs mold on forming plant). Cycle time: 50 times/min
Capacity
|
Type of products |
30-cell egg tray |
12-cell egg carton/box |
10-cell egg carton/box |
6+6-cell egg carton/box |
6-cell egg carton/box |
Fruit tray |
Cup carrier |
|
capacity (PCS/HR) |
8000 |
8000 |
8000 |
8000 |
16000 |
5300 |
9500 |
Consumption
| NO. | DESC | CONSUMPTION PER HOUR |
| 1 | Waste Paper | 600kg |
| 2 | Electricity | 400kw |
| 3 | Water | 4.2-4.6T |

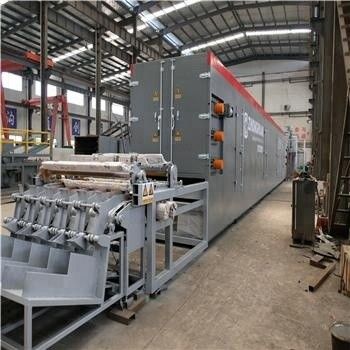

Fully Automatic Rotary Forming Machine
The ful automatic rotary forming machine equipped with drying line is for medium and large production capacity, producing egg tray, egg carton, egg box clamshell, fruit tray, coffee cup tray, medical tray, etc.
There are serveral kinds of specification of the rotary forming machine type of 2 face platens, 4 face platens, 6 face platens, 8 face, with single layer drying line and multi-layer drying line for choose. The drying line can use diesel oil, LPG, natural gas, coal, charcoal and steam heating, etc.
The full automatic rotary machine line 2000pcs/hr, 3000pcs/hr, 3600pcs/hr, 4000pcs/hr, 5000pcs/hr, 6000pcs/hr, 7000pcs/hr etc for choice, based on the egg tray for reference.
Full Automatic Rotary Machine production line Specification
|
Capacity |
Pulping Machine Parameter |
Forming Machine Parameter |
Drying Line Parameter |
|
2250pcs/hr |
Effective Volume 2m3 Power 30kw |
two-Face forming platens, one-face transferring platen. Mold Platen Size 1200×440mm |
Dimension 11100×1530×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
|
3000pcs/hr |
Effective Volume 3m3 Power 30kw |
Two-face forming platen, one-face transferring platen. Mold Platen Size 1500×440mm |
Dimension 11100×1880×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
|
3600pcs/hr |
Effective Volume 3m3 Power 30kw |
Two-face forming platens, one transferring platen. Mold Platen Size 1800×440mm |
Dimension 11100×2230×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
|
5000pcs/hr |
Effective Volume 3m3 Power 55kw |
Four face forming platens, one transferring platen. Mold platen size: 1500×440mm |
Dimension 14800×1880×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
| 6000pcs/hr |
Effective Volume 3m3 Power 55kw |
Four face forming platens, one transferring platen. Mold platen size: 1800×440mm |
Dimension 14800×2230×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
|
Description: The production line capacity isbased on the 30-hole egg tray. For different capacity and other products of the production line, it can be customized according to clients' requirement. |
|||
Range and specification of Paper Pulp Products
