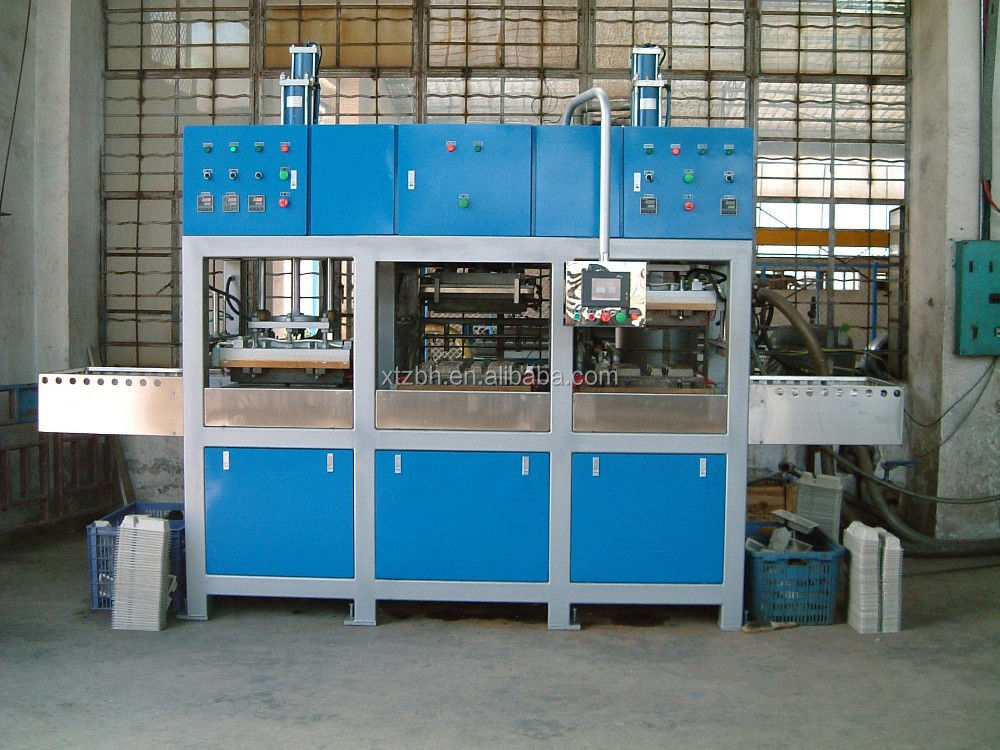

Pulp Plate Making Machine
>
|
|
| Place of Origin | Hunan, China |
| Brand Name | XiangTan ZH |
| Certification | ce |
| Model Number | W1000A |
Tableware production line / paper lunch boxes machine / disposable tableware production line
The pulp molded tableware is usually made of wood or grass pulp.
The pulp disposable tableware is smashed in the hydrapulper and adjusted to a
certain consistency.
After being added to some chemicals, the fiber in the pulp will cover the wire mesh
of the mold with the effect of the vacuum.
The wet products become to the finished products after drying, hot pressing, edge
cutting and disinfection.
All these are finished automatically on the machine, which is efficient, safe, lower
in labor and production costs.
Production line occupation:about 530m2.
Requirement for the worksop: height ≥4.5m,width≥12m,length≥45m.
Total power for the production line: about 108KW.
Workforce for the production line: 3-4 people/shift.
Production capacity: about 0.5-0.8 Ton/day
2.consumption of paper pulp machine for making wine tray
|
Consumption List for P800 |
|||
|
SL |
DESC |
CONSUMPTION PER HOUR |
REMARK |
|
1 |
waste paper |
30-45kg |
|
|
2 |
electricity |
30-45kw |
|
|
3 |
water |
150-175 kg |
|
|
4 |
0# diesel oil |
10-17kg |
Choose one |
|
natural gas |
15-22m3 |
||
|
LPG |
10-17 kg |
||
|
5 |
chemical for water resistance |
0.9-2.0kg |
Solid Content |
|
The calorific value of the fuel |
10000K CARL/kg for Diesel Oil |
Energy consumption calculation is based on these data. |
|
|
8000K CARL/m3 for natural gas |
|||
|
10000K CARL/ kg for LPG |
|||
3.equipments of paper pulp machine for making wine tray
|
Pulping system |
Main equipments:pulper 1.7m3,20kw,1set;vibration screen 1m2,3kw,1set;mixer,2sets;pulp pump, water pump, control cabinet etc. |
|
Forming system |
forming machine,1set;with 1 forming platen and 1 transfer platen;platen size: 800×660mm,forming effeciency: 2-4cycles/min. |
|
Drying system |
Outline dimension: 28000×1800×3600mm; |
|
Hot pressing system |
platen size: 600*480mm; power 6KW; |
|
Cutter |
Used for the trimming and tidying of the products. It can be selected according to the practical requirement. |
|
Subsidiary Equipments |
Vacuum pump,18kw, 1 set; air compressing system: air compressor (13kw, 1set), air dryer, air filter and air storage tank |
