Large Output Egg Carton Making Machine Paper Tray Forming Rotary
  • Large Output Egg Carton Making Machine Paper Tray Forming Rotary
  • Large Output Egg Carton Making Machine Paper Tray Forming Rotary
  • Large Output Egg Carton Making Machine Paper Tray Forming Rotary
  • Large Output Egg Carton Making Machine Paper Tray Forming Rotary
Large Output Egg Carton Making Machine Paper Tray Forming Rotary

Large Output Egg Carton Making Machine Paper Tray Forming Rotary

Place of Origin Hunan, China
Brand Name ZH
Certification CE
Model Number egg tray machine
Product Details
30 Piece/Pieces Per Month:
30sets
Condition:
New
Production Capacity:
1000-15000 Pieces/H
Warranty:
1 Year
Color:
Customized
Product Type:
Egg Tray Making Machine
Core Components:
PLC, Pressure Vessel, Other, Engine, Gear, Motor, Pump, Bearing, Gearbox
Weight:
Heavy
Highlight:

Large Output Egg Carton Making Machine

,

Rotary Egg Carton Making Machine

,

Large Output Paper Egg Tray Machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
negotiation
Packaging Details
Wooden&Nude with Iron Wire Bundle
Delivery Time
75-90days
Payment Terms
T/T and L/C, L/C, T/T, Western Union
Supply Ability
50sets
Product Description

Limited Time Offer Paper Forming Carton Making Rotary Egg Tray Machine

Large Output Egg Carton Making Machine Paper Tray Forming Rotary 0

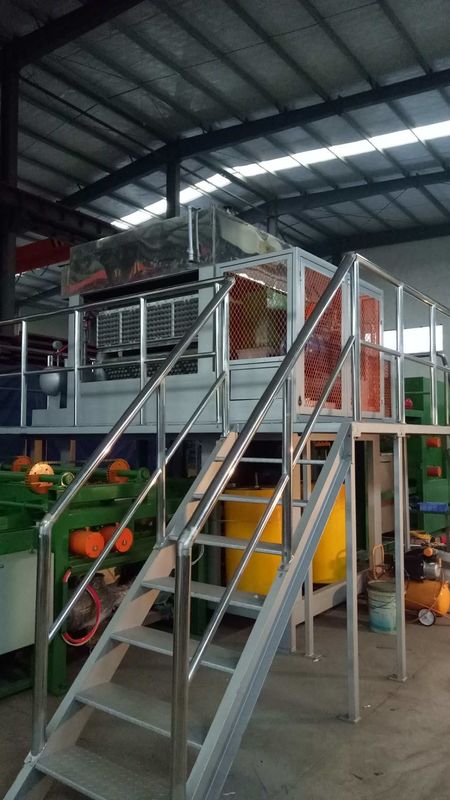

Egg tray machine is a kind of machine which absorbs paper pulp-the raw material, on the surface of mould by vacuum to get various shape and ratio of wet and dry by regulating time. Our egg tray machines select high quality electronic devices and pneumatic components and are fully designed by computer assistant engineering and high technology. It has been proven high efficiency, low maintenance and energy saving. There are various types and output of egg tray making machines can be supplied by our company, such as 1000~1500pcs per hour, 2000~3000pcs per hour, 4000~6000pcs per hour, and so on .You only can tell me what capacity machine do you want,our professional engineer will design the most suitable machine for you!Large Output Egg Carton Making Machine Paper Tray Forming Rotary 1

Large Output Egg Carton Making Machine Paper Tray Forming Rotary 2
Large Output Egg Carton Making Machine Paper Tray Forming Rotary 3RODUCT SPECIFICATIONS
Machine Model
1*3
1*4
3*4
4*4
4*8
5*8
5*12
6*12
Yield(p/h)
1000
1500
2000
2500
4000
5000
6000
8000
Waste Paper(kg/h)
120
160
200
280
320
400
480
640
Water(kg/h)
300
380
450
560
650
750
900
1040
Electricity(kw/h)
32
45
58
78
80
85
90
100
Workshop Area
45
80
80
100
100
140
180
250
Drying Area
No need
216
216
216
216
238
260
300
Large Output Egg Carton Making Machine Paper Tray Forming Rotary 4
1*3
Large Output Egg Carton Making Machine Paper Tray Forming Rotary 5
1*4
Large Output Egg Carton Making Machine Paper Tray Forming Rotary 6
3*4
Large Output Egg Carton Making Machine Paper Tray Forming Rotary 7
4*4
Large Output Egg Carton Making Machine Paper Tray Forming Rotary 8
4*8
Large Output Egg Carton Making Machine Paper Tray Forming Rotary 9
5*8
Details Images
Large Output Egg Carton Making Machine Paper Tray Forming Rotary 10



Raw Material
The raw materials are mainly from various pulp boards such as reed pulp, straw pulp, slurry, bamboo pulp and wood pulp, and waste paperboard, waste paper box paper, waste white paper, paper mill tail pulp waste, etc. Waste paper, widely sourced and easy to collect.
The required operator is 5 people/class: 1 person in the pulping area, 1 person in the molding area, 2 people in the cart, and 1 person in the package.
Large Output Egg Carton Making Machine Paper Tray Forming Rotary 11
Large Output Egg Carton Making Machine Paper Tray Forming Rotary 12
Large Output Egg Carton Making Machine Paper Tray Forming Rotary 13
Large Output Egg Carton Making Machine Paper Tray Forming Rotary 14
Accessories
Large Output Egg Carton Making Machine Paper Tray Forming Rotary 15

Applications:

ZH Egg Tray Machine is a professional PLC egg tray machine, automatic forming mold and product washing egg tray making machine production line from Hunan, China. It is CE certified and minimum order quantity is 1 set. The price is negotiable and the packaging details are Wooden&Nude with Iron Wire Bundle. The delivery time is 75-90days and payment terms are T/T and L/C. The supply ability is 50sets and we can provide 1 year warranty. The power is 30kw and raw material is waste paper. This pulp tray machine has the features of free and recyclable. Video outgoing-inspection is provided.

This egg tray machine is well-known for its high quality and low cost. It is widely used for producing quail eggs boxes, egg packaging cartons tray, eggs transport box, small automatic paper egg carton and various paper egg cartons. This egg tray production line is highly automated and efficient for mass production. It is also environment friendly and energy saving. It can also be customized according to customers’ requirements.

Large Output Egg Carton Making Machine Paper Tray Forming Rotary 16



Large Output Egg Carton Making Machine Paper Tray Forming Rotary 17

Support and Services:

Technical Support and Service for Pulp Egg Tray Machine
  • Provide professional technical support and consultation services.
  • Provide professional installation, commissioning and debugging services.
  • Provide comprehensive operation and maintenance training services.
  • Provide long-term, reliable after-sales service.
  • Provide professional spare parts supply and replacement services.

Packing and Shipping:

Pulp Egg Tray Machine’s packaging and shipping process is as follows:

  • The machine is carefully wrapped in protective bubble wrap
  • The machine is then placed in a custom-made wooden crate
  • The crate is securely fastened with strong metal straps
  • The crate is then loaded onto a pallet
  • The pallet is loaded into a shipping container
  • The container is loaded onto a transport truck or cargo plane
  • The machine is delivered to its destination

FAQ:

Q1: What is the Brand Name of this Egg Tray Machine?
A1: The Brand Name of this Egg Tray Machine is ZH.
Q2: What is the Model Number of this Egg Tray Machine?
A2: The Model Number of this Egg Tray Machine is egg tray machine.
Q3: Where is this Egg Tray Machine made?
A3: This Egg Tray Machine is made in Hunan, China.
Q4: What certification does this Egg Tray Machine have?
A4: This Egg Tray Machine has CE certification.
Q5: What is the minimum order quantity for this Egg Tray Machine?
A5: The minimum order quantity for this Egg Tray Machine is 1set.
