Egg Box Forming Machine
>
|
| Place of Origin | Hunan, China |
| Brand Name | ZH brand |
| Certification | CE |
| Model Number | ET600-ET6000 |

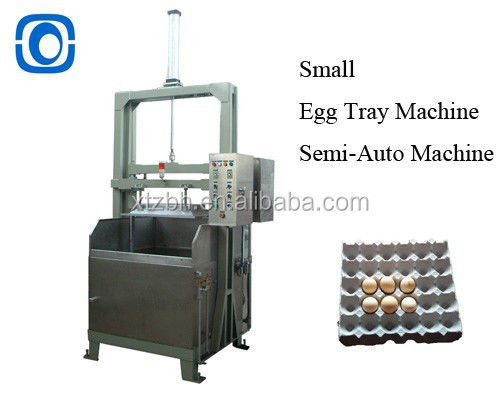

E600 (Semi-auto, no drying line)
Advantage
A. semi auto paper egg tray machine suitable for family factory small factor
B. ZH brand egg tray machine, high quality assurance
C.1 year warranty
D. engineer overseas service
E. energy saving, water saving, oil saving
Main equipment
Pulping system
Main equipments: Hydra-pulpe,1.7m3, 22kw; vibration screen,1m2; mixers; pulp pumps; water pumps; control cabinet and etc.
Forming system
Included one set of forming machine; vacuum auto drain system and auto control cabinet. One piece of forming platen and transferring platen equipped. Platen size: 750*400mm. It can be mounted 2sets of 30-cell egg tray mold on the platen (2pcs/cycle). Cycle time: 15-20 seconds/cycle.
Subsidiary Equipments
Vacuum pump, 18.5kw, one set; air compressing system: air compressor (11kw, 1set), air dryer, air filter and air storage tank.
Features
Occupation: about530m2.Requirement for the
Workshop: height ≥4.5m, width≥12m, length≥45m.
Total power for the production line: 94KW.
Workforce for the egg tray machine: 5-7/shift.
produced products and Capacity
|
Type of products |
30-cell egg tray |
12-cell egg carton/box |
10-cell egg carton/box |
6+6-cell egg carton/box |
6-cell egg carton/box |
Fruit tray |
|
capacity (PCS/HR) |
600 |
600 |
600 |
600 |
1200 |
300 |
Consumption
|
NO. |
DESC |
CONSUMPTION PER HOUR |
REMARK |
|
1 |
Waste Paper |
30-35kg |
|
|
2 |
Electricity |
70-80kw |
|
|
3 |
Water |
0.5-1T |
|
|
4 |
0# Diesel Oil |
10-15kg |
Choose one from the three |
|
Natural Gas |
13-20m3 |
||
|
LPG |
10-15kg |
||
|
5 |
Chemical for Water Resistance |
0.5-1.0kg |
Solid Content |
|
(This data only for reference ) |
Company Information
ZH Molded Pulp Co., Ltd is specialized in manufacturing pulp molding machines, the first pulp molding machine supplier found in 1986.
Through 20 year’s experience, our company has a professional team in designing, manufacturing, and after-sale service. Our team has know the most advanced technology well in pulp molding machines, which have the types of reciprocating machine, rotary machine. In 2008, we developed an energy-saving, small-space multi-layers drying line, popular in domestic and abroad.
Our machine has been sold well at home and abroad such as South America, Africa, Russia, Mexico,Indonesia,Morroco, Denmark,Sweden and Middle-East area, in the quality of energy-saving, advanced design, and reasonable cost.
FAQ
1.What kind of material we can use as the material?
Any kinds of waste paper or used paper products like old newspaper,magazines,books, used boxes, abandoned cartons etc, and easy to collect the raw materials.
2.What kind of Fuel can be used for the whole production line?
Generally the fuel is coal,natural gas,dieseal oil.
3.What kind of products can be made by this machine?
All paper product trays and cartons like paper egg tray,egg carton,egg box,fruit tray,bottle tray, plate and tableware, electric product packing, disposable tray, shoes tray etc.
4. How to install the machine?
We will send engineers to your country to help install and test the machine,and teach you how to use the machine.
5.How about the warranty?
12 months after installation.
