| Place of Origin | Hunan, China |
| Brand Name | ZH brand |
| Certification | ce |
| Model Number | E4000B |
E4000B (full auto, Rotary, 6 layers drying line) specification list
|
Type of products |

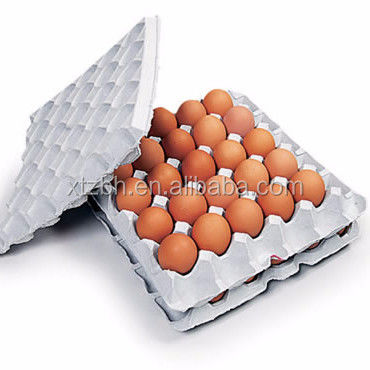

30-cell egg tray |
12-cell egg carton/box |
10-cell egg carton/box |
6+6- cell egg carton/box |
6-cell egg carton/box |
Fruit tray |
Coffee tray |
|
capacity (PCS/HR) |
4000 |
4000 |
4000 |
4000 |
8000 |
3000 |
5000 |
Remarks: The capacity calculation takes the production of 30 cavity egg trays as the standard.(Size 300X290MM, weight 70g)
| The Power list (Auto 4000B1C) | |||||
| NAME AND TYPE | QUANTITY | POWER (KW) |
REMAKR | ||
| Pulping System |
1 | SY-100-710 Conveyor | 1 | 3 | |
| 2 | ZSJD-3 Hydrapulper | 1 | 55 | ||
| 3 | ZSK-1.8 Vibration Screen | 1 | 4 | ||
| 4 | JB-160-210 Agitator | 2 | 6 | 3kw/set | |
| 5 | Stock Pump | 2 | 8 | 4KW/SET | |
| 6 | Water Pump 1 | 1 | 5.5 | ||
| 7 | Water Pump 2 | 1 | 2.2 | ||
| 8 | Water Pump 5 | 1 | 4 | ||
| Forming System |
9 | XZ8-14040 Automatic Rotary Forming Machine |
1 | 11 | |
| 10 | Filter | 1 | 0.37 | ||
| 11 | Water-ring Vaccum Pump | 1 | 75 | ||
| 12 | Air Compressor | 1 | 30 | ||
| 13 | Refrigerated Air Dryer | 1 | 2 | ||
| Drying Systerm |
14 | Drying Line | 1 | 32.2 | |
| Stacking System |
15 | Finished Product Conveyor | 1 | 0 | |
| 16 | Stacker | 1 | 0 | ||
| Total Power | 238.27 | ||||
| Consumption List (Auto 4000B1C) | |||
| NO. | DESCRIPTION | CONSUMPTION PER HOUR | REMARK |
| 1 | Waste Paper | 300kg | |
| 2 | Electricity | 180kw | |
| 3 | Water | 1.5-2.5T | |
| 4 | 0# Diesel Oil | 40-45kg | choose anyone from the three |
| Natural Gas | 45-55m³ | ||
| LPG | 35-45kg | ||
| 5 | Chemical for Water Resistence |
1.5-2.0kg | Solid Content This data only for reference |
| The Calarific Value of the Fuel | 10000K CARL/ kg for Diesel Oil | Energy Consumption of No.4 is counted with these data. | |
| 8000K CARL/m³ for Natural Gas | |||
| 10000k CARL/ kg for LPG | |||
