Egg Box Forming Machine
>
|
|
| Place of Origin | Hunan, China |
| Brand Name | ZH brand |
| Certification | ce |
Mainly used for the products with simple structure but in big quantity, such as egg trays, fruit trays, cup carriers and disposable medical care products.
Status: Brand new
Product Type: Seedling Tray Machine
Processing Type: Pulp Molding Machine
Place of origin: Hunan China
Brand: ZH
Voltage: 380-440V
Approval: CE
Warranty: 12 Monthes
After-Sale Service: Engineers available to service machinery overseas
| Capacity(B) | Pulper | Rotary Forming Machine | Dryer |
| 2000 PCS/hr | Volume 2m3, power 37Kw | 4 forming platens, platen size 1600X400MM | 6 layers, /ingle layer outline dimension 15000X2120X4200MM, Fuel: diesel, gas, LPG |
| 3000 PCS/hr | Volume 3m3, power 55Kw | 8 forming platens, platen size 1600X400MM | 6 layers, /ingle layer outline dimension 18000X2120X4200MM, Fuel: diesel, gas, LPG |
| 4000 PCS/hr | Volume 3m3, power 55Kw | 8 forming platens, platen size 1600X400MM | 6 layers, /ingle layer outline dimension 21000X2120X4200MM, Fuel: diesel, gas, LPG |
Introduction of the pulp molded Machine
The fully automatic pulp molding machine developed by ZH is composed of pulping system, forming system, drying system, stacking system with some auxiliary equipments.
Taking old newsprint, magazine or used cartons, any kind of paper products as the raw material, with the process of pulping, screening, consistency regulating, forming and drying. The same machine can be used to prodce molded pulp egg cartons as well with a higher capacity.
By changing to different molds, the egg tray production line can also produce various kinds of moulded pulp products with large quantity demand and simple structure such as egg box(6-hole, 10 hole, 12-hole,etc) , fruit tray(apple tray, avocado tray, pear,etc), Coffee cup tray( 2-cup holder, 4-cup and 5-cup holder) and wine bottle tray. It can also produce some types of inner packages for electric products and disposable medical-care products.

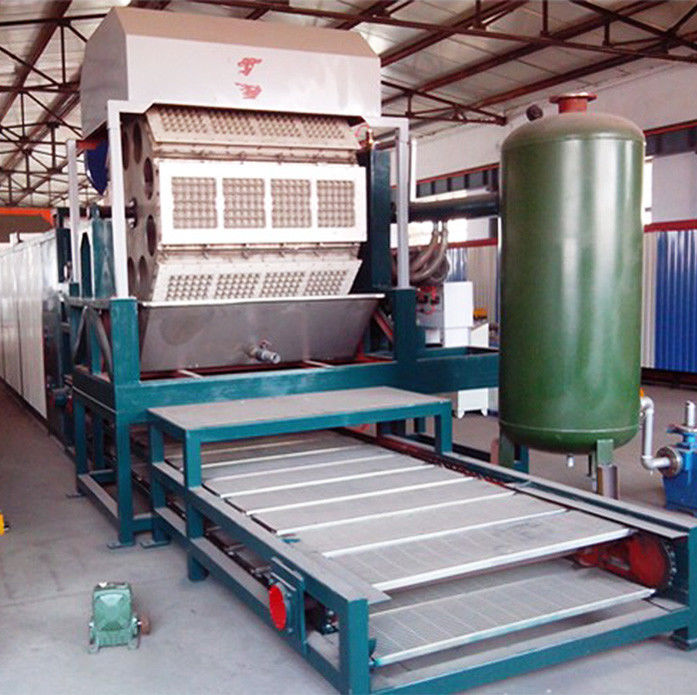

Fully Atutomatic Rotary Forming Machine
The fully automatic rotary forming machine line is for medium and large capacity production, such as 2000pcs/hr, 3000pcs/hr, 3600pcs/hr, 4000pcs/hr, 5000pcs/hr, 6000pcs/hr, etc for choice.
There are some kinds of specification of 2 face platens, 4 face platens, 6 face platens, 8 face platens and other specifications for the rotary machine; and single layer drying line and multi-layer drying line for choose. The drying line can use diesel oil, LPG, natural gas, coal, charcoal and steam heating, etc.
Full Automatic Rotary Forming machine production line Specification
|
Capacity |
Pulping Machine Parameter |
Forming Machine Parameter |
Drying Line Parameter |
|
2250pcs/hr |
Effective Volume 2m3 Power 30kw |
two-Face forming platens, one-face transferring platen. Mold Platen Size 1200×440mm |
Dimension 11100×1530×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
|
3000pcs/hr |
Effective Volume 3m3 Power 30kw |
Two-face forming platen, one-face transferring platen. Mold Platen Size 1500×440mm |
Dimension 11100×1880×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
|
3600pcs/hr |
Effective Volume 3m3 Power 30kw |
Two-face forming platens, one transferring platen. Mold Platen Size 1800×440mm |
Dimension 11100×2230×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
|
5000pcs/hr |
Effective Volume 3m3 Power 55kw |
Four face forming platens, one transferring platen. Mold platen size: 1500×440mm |
Dimension 14800×1880×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
| 6000pcs/hr |
Effective Volume 3m3 Power 55kw |
Four face forming platens, one transferring platen. Mold platen size: 1800×440mm |
Dimension 14800×2230×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
|
Description: The production line capacity isbased on the 30 cell egg tray. (Mold size: 300×290mm, weight: 70g) For different capacity and other products of the production line, it can be customized according to clients' requirement. |
|||
Contact Us
Amy
Mobile/Wechat/Whatsapp:0086-15675295837
The Advantages of Paper Pulp Molding Production Line
1. Waste paper Recycling with low cost
Its raw material are any kind of papers, like wasted newspaper, carton, printers or leftover bits in paper mill, convenient to collect with low cost. The cost of pulp molding product is much lower than EPS products.
2. Best environmental protection:
non-environmental pullution during the whole process of production, utility and waste treatment: no waste water consumption with water recycling, no waste materials with waste paper recycling, and non-environmental pullution.
3. Recycling use
low recycling cost and it can be used repeatedly. Biodegradable as vegetable fiber during one or two month. The finished products can be stacked, space-saving.
4. Good Market prospect
There is a restriction in developed country such as Europe, America ans Japan for importing EPS products, and advocate the use of enviromental packaging materials, encourage for Eco-package replaced of EPS packages in order to reject white pollution.
5. Good Performance.
Anti-shack, anti-static electricity, better efficiency than EPS, PS and PVC products.
Application
The machine mainly produce large quantity and easy structure pulp products such as egg tray, egg carton,fruit tray, fruit tray, coffee cup tray, medical tray and so on.
Applicable industries: poultry, animal husbandry, agriculture, carton production industry, printing industry, paper industry, etc.
FAQ
1.What kind of material we can use as the material?
Any kinds of waste paper or used paper products like old newspaper,magazines,books, used boxes, abandoned cartons etc, and easy to collect the raw materials.
2.What kind of Fuel can be used for the whole production line?
Generally the fuel is coal,natural gas,dieseal oil.
3.What kind of products can be made by this machine?
All paper product trays and cartons like paper egg tray,egg carton,egg box,fruit tray,bottle tray, plate and tableware, electric product packing, disposable tray, shoes tray etc.
