Egg Box Forming Machine
>
|
| Place of Origin | Hunan, China |
| Brand Name | ZH brand |
| Certification | ROHS，CE |
| Model Number | ET6000 |

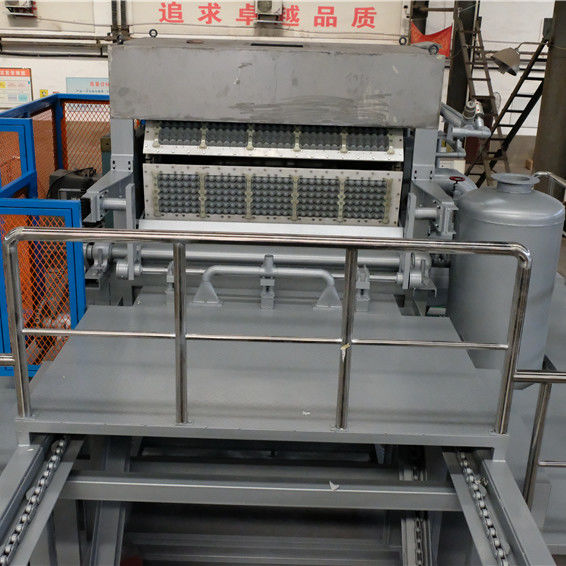

Fully Automatic Rotary Forming Machine
The ful automatic rotary forming machine equipped with drying line is for medium and large production capacity, producing egg tray, egg carton, egg box clamshell, fruit tray, coffee cup tray, medical tray, etc.
There are serveral kinds of specification of the rotary forming machine type of 2 face platens, 4 face platens, 6 face platens, 8 face, with single layer drying line and multi-layer drying line for choose. The drying line can use diesel oil, LPG, natural gas, coal, charcoal and steam heating, etc.
The full automatic rotary machine line 2000pcs/hr, 3000pcs/hr, 3600pcs/hr, 4000pcs/hr, 5000pcs/hr, 6000pcs/hr, 7000pcs/hr etc for choice, based on the egg tray for reference.
Full Automatic Rotary Machine production line Specification
|
Capacity |
Pulping Machine Parameter |
Forming Machine Parameter |
Drying Line Parameter |
|
2250pcs/hr |
Effective Volume 2m3 Power 30kw |
two-Face forming platens, one-face transferring platen. Mold Platen Size 1200×440mm |
Dimension 11100×1530×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
|
3000pcs/hr |
Effective Volume 3m3 Power 30kw |
Two-face forming platen, one-face transferring platen. Mold Platen Size 1500×440mm |
Dimension 11100×1880×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
|
3600pcs/hr |
Effective Volume 3m3 Power 30kw |
Two-face forming platens, one transferring platen. Mold Platen Size 1800×440mm |
Dimension 11100×2230×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
|
5000pcs/hr |
Effective Volume 3m3 Power 55kw |
Four face forming platens, one transferring platen. Mold platen size: 1500×440mm |
Dimension 14800×1880×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
| 6000pcs/hr |
Effective Volume 3m3 Power 55kw |
Four face forming platens, one transferring platen. Mold platen size: 1800×440mm |
Dimension 14800×2230×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
|
Description: The production line capacity isbased on the 30-hole egg tray. For different capacity and other products of the production line, it can be customized according to clients' requirement. |
|||
Range and specification of Paper Pulp Products
This machine is controlled by PLC, highly automation, easily learned, convenient services, and can
use in different business.It can produce egg carton, egg box, egg tray, bottle tray, agricultural train seeding
cup, industrial production packing. The equipment is best- selling nation and is sold abroad.
1.lower labor cost
2.professional design layout
3.high capacity
4.fast installation
5.fast lead time
Features
Workshop: size ≥7x18x50m.
Total power for the production line: 98KW.
Workforce for the egg tray machine: 4-5 people/shift.
Drying line size: 18X2.12X3.65M
Capacity
ZH Molded Pulp Co., Ltd is specialized in manufacturing pulp molding machines, the first pulp molding machine supplier found in 1986.
Through 20 year’s experience, our company has a professional team in designing, manufacturing, and after-sale service. Our team has know the most advanced technology well in pulp molding machines, which have the types of reciprocating machine, rotary machine. In 2008, we developed an energy-saving, small-space multi-layers drying line, popular in domestic and abroad. Our machine has been sold well at home and abroad such as South America, Africa, Russia, and Middle-East area, in the quality of energy-saving, advanced design, and reasonable cost.
| Model | Capacity | Automation | Dryer | Forming Type |
|
ET600(click to view more) |
600pcs/hour |
Semi auto |
No |
Reciprocating |
|
E1000(click to view more) |
1000pcs/hour |
Semi auto |
No |
Reciprocating |
|
E2000(click to view more) |
2000pcs/hour |
full auto |
multilayer |
Rotary |
|
E3000(click to view more) |
3000pcs/hour |
full auto |
multilayer |
Rotary |
|
E4000(click to view more) |
4000pcs/hour |
full auto |
multilayer |
Rotary |
|
E8000(click to view more) |
8000pcs/hour |
full auto |
multilayer |
Rotary |
|
E10000(click to view more) |
10000pcs/hour |
full auto |
multilayer |
Double Rotary |
|
E15000(click to view more) |
15000pcs/hour |
full auto |
multilayer |
Double Rotary |
Semi-auto reciprocating egg tray Machine Full Automatic Tableware Machine Double Rotary egg tray Machine
400pcs / hr -1000 pcs /hr 8000- 100000 pcs / hr
