Egg Box Forming Machine
>
|
| Place of Origin | Hunan, China |
| Brand Name | ZH brand |
| Certification | ce |
| Model Number | E600 |

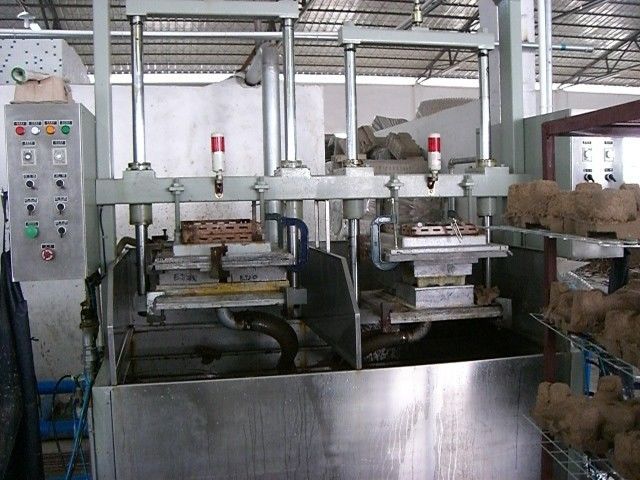

E600 (Semi-auto, no drying line)
Advantage
A. semi auto paper egg tray machine suitable for family factory small factor
B. ZH brand egg tray machine, high quality assurance
C.1 year warranty
D. engineer overseas service
E. energy saving, water saving, oil saving
Produced products and Capacity
|
Type of products |
30-cell egg tray |
12-cell egg carton/box |
10-cell egg carton/box |
6+6-cell egg carton/box |
6-cell egg carton/box |
Fruit tray |
Cup carrier |
|
capacity (PCS/HR) |
600 |
600 |
600 |
600 |
1200 |
300 |
600 |
| The Power list (Auto 600BIC) | |||||
| NAME AND TYPE | QUANTITY | POWER (KW) |
REMAKR | ||
| Pulping System | 1 | ZSJD-0.5 Hydrapulper | 1 | 7.5 | |
| 2 | JB-120-210 Agitator | 2 | 4.4 | 2.2kw/set | |
| 3 | Stock Pump | 2 | 2.2 | 2.2KW/SET | |
| 4 | Water Pump 1 | 1 | 2.2 | ||
| 5 | Water Pump 2 | 1 | 2.2 | ||
| 6 | Water Pump 5 | 1 | 1.1 | ||
| Forming System |
7 | Forming Machine | 1 | 7.5 | |
| 8 | Vaccum Pump | 1 | 7.5 | ||
| 9 | Air Compressor | 1 | 7.5 | ||
| 10 | Refrigerated Air Dryer | 1 | 2 | ||
| Total Power | 44.1 | ||||
| Consumption List (600BIC) | |||
| NO. | DESCRIPTION | CONSUMPTION PER HOUR | REMARK |
| 1 | Waste Paper | 28kg | |
| 2 | Electricity | 25kw | |
| 3 | Water | 1.5-2.5T | |
| 4 | 0# Diesel Oil | 0kg | choose anyone from the three |
| Natural Gas | 0m³ | ||
| LPG | 0kg | ||
| 5 | Chemical for Water Resistence |
0kg | Solid Content This data only for reference |
| The Calarific Value of the Fuel | 10000K CARL/ kg for Diesel Oil | Energy Consumption of No.4 is counted with these data. | |
| 8000K CARL/m³ for Natural Gas | |||
| 10000k CARL/ kg for LPG | |||
ZH Molded Pulp Co., Ltd is specialized in manufacturing pulp molding machines, the first pulp molding machine supplier found in 1986.
Through 20 year’s experience, our company has a professional team in designing, manufacturing, and after-sale service. Our team has know the most advanced technology well in pulp molding machines, which have the types of reciprocating machine, rotary machine. In 2008, we developed an energy-saving, small-space multi-layers drying line, popular in domestic and abroad. Our machine has been sold well at home and abroad such as South America, Africa, Russia, and Middle-East area, in the quality of energy-saving, advanced design, and reasonable cost.
