Biodegradable Bagasse Pulp Tableware Plate Making Machine Disposable Paper Dish Making Machine
E1500B (full auto, reciprocation, 4 layers drying line)
1. This machine mainly produce the pulp moulded products,such as egg tray ,egg box, fruit tray,coffee tray etc.
2. The material for the molded pulp products is waste paper,corrugated paper,waste newspaper,magazine.
3. We have different types moulding machine for choosing according to your requirements. And we will supply all-round service for inquirying, pricing, technique teaching, installation and matainence.
Capacity and product pictures
|
Type of products |
30-cell egg tray |
12-cell egg carton/box |
10-cell egg carton/box |
6+6- cell egg carton/box |
6-cell egg carton/box |
Fruit tray |
Coffee tray |
|
capacity (PCS/HR) |
1500 |
1500 |
1500 |
1500 |
3000 |
900 |
1800 |
Remarks: The capacity calculation takes the production of 30 cell egg trays as the standard.(Size 295X295MM, weight 60-75g)
Consumption of full auto paper egg tray machine
|
SL |
DESC |
Consumption/hour |
remarks |
|
1 |
Pulp |
60-68kg |
/ |
|
2 |
Electricity |
68-72kw |
/ |
|
3 |
Water |
0.4-0.6T |
/ |
|
4 |
0#diesel oil |
18-20kg |
Choose one |
|
natural gas |
20-25m3 |
||
|
LPG |
18-20kg |
||
|
5 |
Chemical for waterproof |
0.5-1kg |
Solid content |
|
The calorific value of the fuel |
10000k Carl/kg for diesel oil |
Energy consumption calculation is based on this data |
|
|
8000k Carl/m3 for natural gas |
|||
|
10000k Carl/ m3 for LPG |
|||
parameter, main parts
1). Workforce for the production line: 3-4people/shift
2). Pulper: volume 1.5m3, power 15Kw
3). forming machine: Reciprocating type, platen size 1420X400MM
4). Dryer: 4 layer, 28000×2120×2000mm

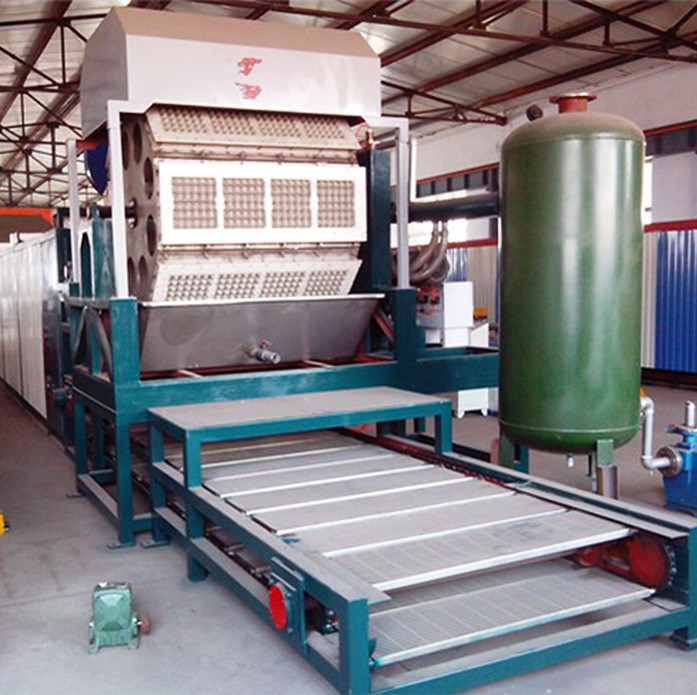

Fully Automatic Rotary Forming Machine
The ful automatic rotary forming machine equipped with drying line is for medium and large production capacity, producing egg tray, egg carton, egg box clamshell, fruit tray, coffee cup tray, medical tray, etc.
There are serveral kinds of specification of the rotary forming machine type of 2 face platens, 4 face platens, 6 face platens, 8 face, with single layer drying line and multi-layer drying line for choose. The drying line can use diesel oil, LPG, natural gas, coal, charcoal and steam heating, etc.
The full automatic rotary machine line 2000pcs/hr, 3000pcs/hr, 3600pcs/hr, 4000pcs/hr, 5000pcs/hr, 6000pcs/hr, 7000pcs/hr etc for choice, based on the egg tray for reference.
Full Automatic Rotary Machine production line Specification
|
Capacity |
Pulping Machine Parameter |
Forming Machine Parameter |
Drying Line Parameter |
|
2250pcs/hr |
Effective Volume 2m3 Power 30kw |
two-Face forming platens, one-face transferring platen. Mold Platen Size 1200×440mm |
Dimension 11100×1530×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
|
3000pcs/hr |
Effective Volume 3m3 Power 30kw |
Two-face forming platen, one-face transferring platen. Mold Platen Size 1500×440mm |
Dimension 11100×1880×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
|
3600pcs/hr |
Effective Volume 3m3 Power 30kw |
Two-face forming platens, one transferring platen. Mold Platen Size 1800×440mm |
Dimension 11100×2230×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
|
5000pcs/hr |
Effective Volume 3m3 Power 55kw |
Four face forming platens, one transferring platen. Mold platen size: 1500×440mm |
Dimension 14800×1880×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
| 6000pcs/hr |
Effective Volume 3m3 Power 55kw |
Four face forming platens, one transferring platen. Mold platen size: 1800×440mm |
Dimension 14800×2230×2550mm Energy: Natural Gas/LPG/Coal(Steam/Thermal Oil) |
|
Description: The production line capacity isbased on the 30-hole egg tray. For different capacity and other products of the production line, it can be customized according to clients' requirement. |
|||
Range and specification of Paper Pulp Products
