Egg Box Forming Machine
>
|
|
| Place of Origin | Hunan, China |
| Brand Name | ZH brand |
| Certification | ce |
| Model Number | ET6000pcs/hr |

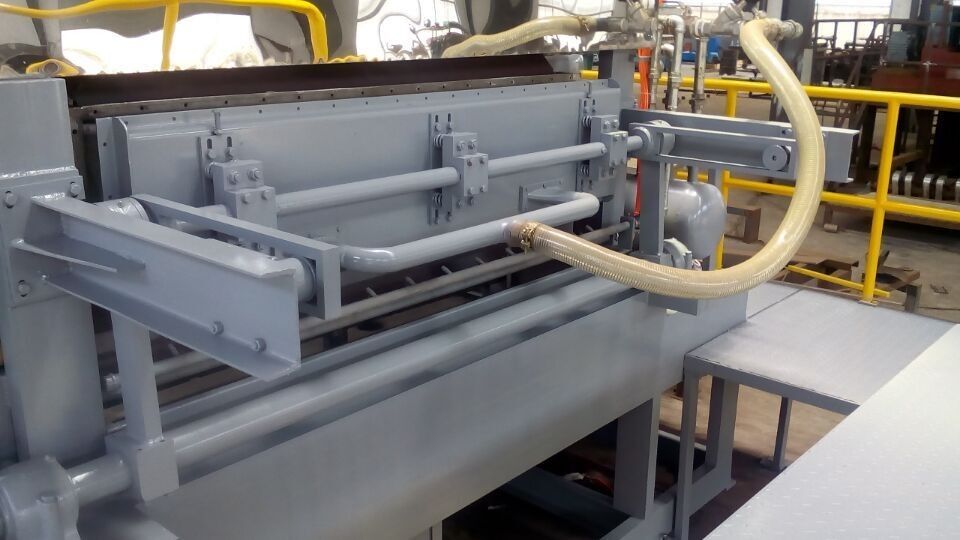

6000 pcs/hr Rotary Egg Tray Machine Line
Advantage
A. easy operate, for large quanity output
B. ZH brand egg tray machine, high quality assurance
C.1 year warranty
D. engineer overseas service
E. energy saving, water saving, oil saving
F. Included one set of forming machine; vacuum auto drain system and auto control cabinet. One piece of forming platen and transferring platen equipped. Platen size: 700*440mm. It can be mounted 2sets of 30-cell egg tray mold on the platen (2pcs/cycle, total 12pcs mold on forming plant). Cycle time: 50 times/min
Capacity
|
Type of products |
30-cell egg tray |
12-cell egg carton/box |
10-cell egg carton/box |
6+6-cell egg carton/box |
6-cell egg carton/box |
Fruit tray |
Cup carrier |
|
capacity (PCS/HR) |
6000 |
6000 |
6000 |
6000 |
12000 |
5500 |
6500 |
Capacity and products pictures
| Type of products | 30-cell egg tray | 12-cell egg carton/box | 10-cell egg carton/box | 6+6 cell egg carton/box | 6-cell egg carton/box | Fruit tray | Coffee tray |
| capacity (PCS/HR) | 6000 | 6000 | 6000 | 6000 | 6000 | 5000 | 7000 |
Remarks: The capacity calculation takes the production of 30 cavity egg trays as the standard.(Size 300X290MM, weight 70g)
| The Power list (Full Auto ET6000B) | |||||
| NAME AND TYPE | QUANTITY | POWER (KW) |
REMAKR | ||
| Pulping system | 1 | ZH800-9000 paper Conveyor |
1 | 3 | |
| 2 | ZGS-3 Hydrapulper | 1 | 55 | ||
| 3 | ZSK-0.6 Vibration Screen | 1 | 2.2 | ||
| 4 | JB-160-210 Agitator | 2 | 6 | 3kw/set | |
| 5 | Stock Pump1 | 1 | 7.5 | 7.5KW/SET | |
| 6 | Stock Pump2,3 | 1 | 8 | ||
| 7 | Water Pump 1 | 1 | 4 | ||
| 8 | Water Pump 1 | 1 | 3 | ||
| 9 | Single-effect Fiber Separater | 1 | 22 | ||
| 10 | High pressure water pump | 1 | 4 | ||
| 11 | High pressure washer | 1 | 3 | ||
| Forming System |
12 | E6000-1800 Automatic Forming Machine |
1 | 14 | 11+3 |
| 13 | Filter | 1 | 0.37 | ||
| 14 | Water-ring Vaccum Pump | 1 | 75 | ||
| 15 | Filtrating Pump | 1 | 7.5 | ||
| 16 | Air Compressor | 1 | 22 | ||
| 17 | Refrigerated Air Dryer | 1 | 2 | ||
| Drying Systerm |
15 | Drying Line | 1 | 30 | |
| Total Power | 268.57 | ||||
| Consumption List (Full-Auto ET6000B) | |||
| NO. | DESCRIPTION | CONSUMPTION PER HOUR | REMARK |
| 1 | Waste Paper | 420kg | |
| 2 | Electricity | 200kw | |
| 3 | Water | 2T | |
| 4 | 0# Diesel Oil | 56kg | choose anyone from the three |
| Natural Gas | 72m³ | ||
| LPG | 56kg | ||
| 5 | Chemical raw material |
4kg | Solid Content. This data is only for reference |
| Fuel combustion values | 10000K CARL/ kg for Diesel Oil | Energy Consumption of No.4 is counted with these data. | |
| 8000K CARL/m³ for Natural Gas | |||
| 10000k CARL/ kg for LPG | |||
